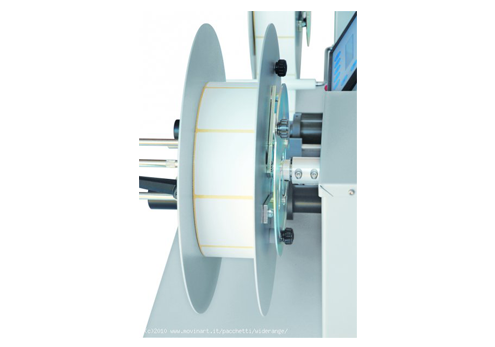

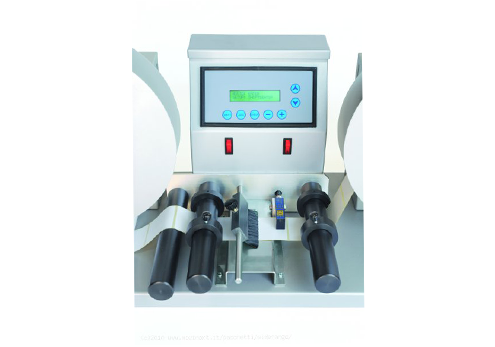

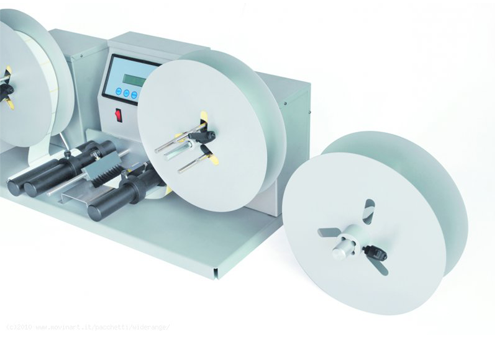

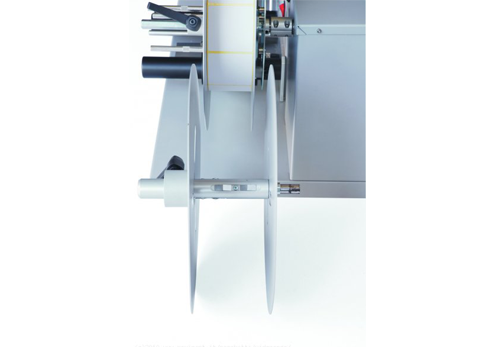

ALcount is a reel to reel unwind/rewind system for roll format labels with the facility to count a set quantity of labels, and/or check for missing labels on the reel.
It is commonly also used for stock allocation as well as label stock-takes, or to change the leading edge of a label.
Specific functions of the machine include:
When working as a rewinder: the unit can rewind reel format labels of a maximum 300 mm diameter, wound either face in or face out, with a core diameter ranging from 40 to 110 mm. The maximum rewind rotation speed is over 50 mt/min.
When working as a control device: a photocell will not only count the labels but also check their presence on the reel, with an audible signal and automatic stop function where a missing label is detected. An optional ultrasonic detector is available for processing transparent labels.
A special ultra heavy-duty version of ALcount is also available, with 400mm max diameter reels (with fixed 76mm expanding core mandrel), for large (and heavy) label rolls up to 25kg in weight.
The maximum leading-edge width of labels is also increased with this machine to 230mm.
A further option for ALcheck is the possibility of an extended platform and secondary drive system - ideal for label inspection via barcode or camera control checking device.
Simple good/bad processes (e.g. a barcode read confirmation) can be controlled directly via the ALcount controller. More advanced label checking, checking for a specific barcode or a number of variable fields via smart camera, require a 3rd party control device such as ALcheck (see: Checking Sytems), or your chosen control 3rd party checking solution.
Contact ALTech UK to discuss your requirements with our experienced and knowledgeable team.
